CATU CM-50

CATU CM50 33kV Discharge Stick

CATU Safety Equipment for LV MV HV Electrical Applications

33kV Discharge Stick

The CATU CM-50 Static Discharge Stick is used for medium/ high voltage overhead lines, busbars and substation use up to 33kV. The CATU discharge stick complies to the IEC 60855 standard and is used to safely dissipate electrostatic charges.

Manufacturer: CATU SAS is a subsidiary of the SICAME Group
Order Code: CM-50
Product Category: Insulating Sticks

T&D are the UK’s largest stockist and supplier of CATU Electrical Safety Equipment for LV MV HV applications.

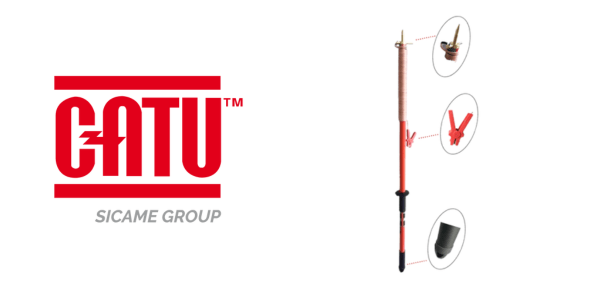

CATU CM50 33kV Discharge Stick

Technical Specification

CATU Part Reference	Manufacturer	Weight	Dimensions (mm)	Operating Voltage AC	EAN	HS Commodity Codes	Country of Origin
CM50	CATU Electrical	2700g	1 600 x Ø90	33kV	3597560043341	39269097	France

Application:

Stick to discharge any electrostatic charges
Fitted with an insulated alligator clamp
Up to 33 kV

Features:

Supplied with copper cable 6 m length (6 mm²), insulated with PVC
Handguard position: 0,65 m
Contact pin in bronze, length : 80 mm
Fitted with a handguard and anti-shock bottom cap with manoeuvring loop

CATU Insulating Stick – Model CM-50

Discharge Rods & Sticks for Medium & High Voltage Power Networks | MV HV

➡ See also static discharge sticks for use on MV HV Electrical Power Systems up to 33kV (CATU CM50) – supplied with 6m length copper cable fitted with insulated alligator clamp and Tested in accordance to IEC 60855. Additionally, the Westminster range of discharge sticks from PENTA manufactured from 1.2 metre-long lightweight insulating tubing and fitted with a dischargeable hook are available for use on 11kV/35kV medium/high voltage power cables.

Discharge Rods | Westminster | PENTA | 11kV (15kV) to 33kV (35kV)

Static Discharge Sticks | CM50 CATU Electrical Safety Equipment

Operating Poles

An extensive range of Operating Poles manufactured from lightweight resin-impregnated fibreglass provide highest levels of electrical safety and insulation across standard voltages: 11kV, 33kV 66kV. The operating poles can be inter-connected to achieve extended lengths for both Medium Voltage & High Voltage (MV-HV) overhead line and substation applications. The poles are compliant to ENA Technical Specification TS 41-21 which combines substation and overhead line portable earthing requirements (previously covered by ENA TS 43-81).
