Cable and pipe transits for naval vessels

Cable Transits & Duct Seals

Increased Safety & Security

With world class cable transits protecting against multiple risks, you pave the way for maximum survivability. Cable transits and duct seals from Roxtec are your solution for safety, EMI/EMP protection and blast load resistance.

The vibration damping, the area efficiency and the light-weight nature of the pipe seals contribute to a more silent operation and more free space onboard. Roxtec solutions simplify everything – from planning to future upgrades.

Application areas

Explore the multitude of applications where you can benefit from Roxtec’s solutions.

Cabinets & enclosures

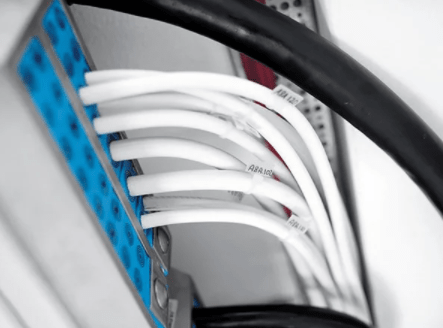

Roxtec Cable Transits for Cabinets & Enclosures

Roxtec CF 8/32 Transit

Roxtec multi-cable transits offer several additional customer benefits and can entirely replace cable glands. Use Roxtec’s compact, area efficient seals to ensure EMI/EMP protection and to be able to reduce the size of your cabinets, junction boxes and enclosures as well as to reduce engineering hours spent on cable data and cable gland configurations.

Why use Roxtec?

  • Watertight
  • Gas-tight
  • Dust-tight
  • One cut-out for dozens of pre-terminated cables which may vary in size
  • Built-in spare capacity for upgrades and retrofits
  • Solutions for armoured cables
  • EMC solutions for electrical safety
  • Ex solutions for hazardous locations

Recommended Sealing Solutions

Description Fire Tightness
Roxtec S Transit Roxtec S Transit
Transit for welding to the structure. For welding into a precise aperture.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)

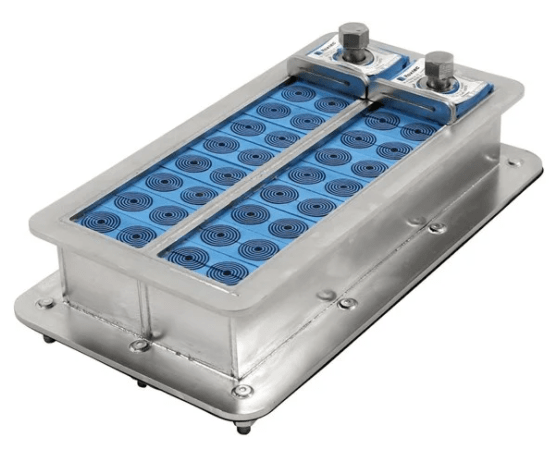

Roxtec HD Transits Roxtec HD Transits
High cable density transit device with frame in 316L. For harsh environments.
N/A IP66/IP67
UL/NEMA 4.4X, 12, 13

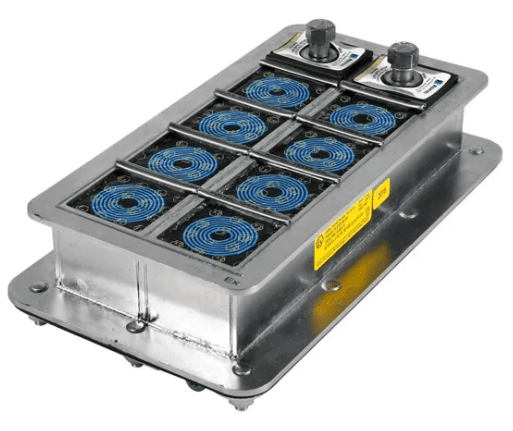

Roxtec HD Ex Transits Roxtec HD Ex Transits
High cable density transit devices for Ex environments with frame in 316L.
N/A IP66/IP67
UL/NEMA 4.4X, 12, 13
Ex e/ Ex tb

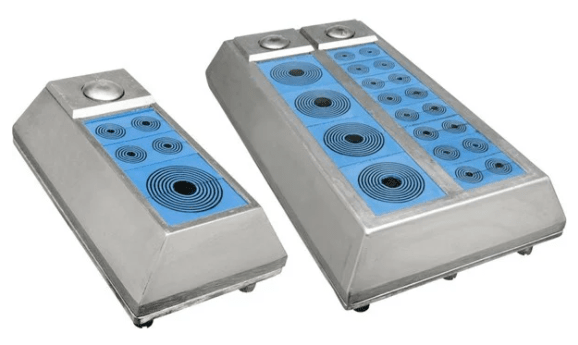

Roxtec CF 8 32 Transits Roxtec CF 8/32 Transit
High cable density transit with aluminium frame
N/A IP66/IP67
UL/NEMA 4.4X, 12, 13

Command control room

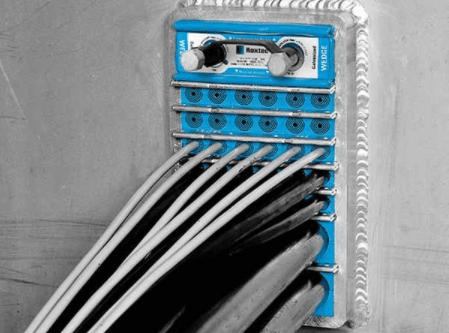

Roxtec Cable Transits for Command Control Rooms

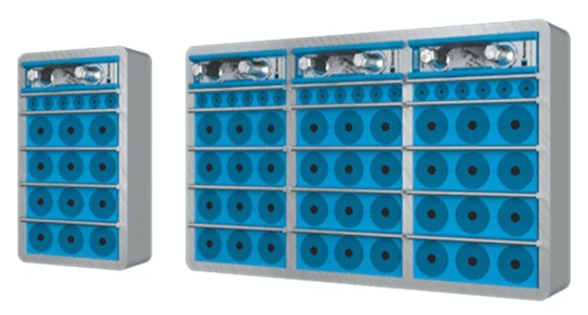

Roxtec S Transit

Roxtec cable transits ensure electromagnetic shielding and protect equipment both inside, and around the command control room. Use Roxtec EMC solutions to secure data, communication and high-precision operation in order to improve survivability.

Why use Roxtec?

  • EMI/EMP protection
  • Watertight
  • Firestop
  • Gas-tight
  • Dust-tight
  • Blast load resistant
  • Flexibility for cables of different sizes
  • Built-in spare capacity for upgrades and retrofits
  • EMC solutions for electrical safety

Recommended Cable & Pipe Sealing Solutions

Description Fire Tightness
Roxtec S Transit Roxtec S Transit
Transit for welding to the structure. For welding into a precise aperture.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)

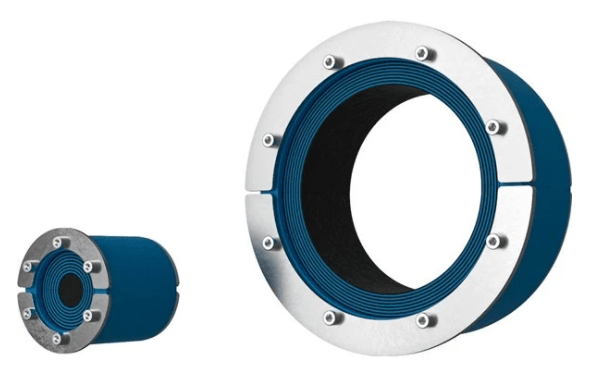

Roxtec RS Seal Roxtec RS Seal
Penetration seal for a single cable or pipe. For installation in existing sleeves or core drilled holes.
A-CLASS
H-CLASS
EI 60
EI 120
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec CF 8 32 Transits Roxtec CF 8/32 Transit
High cable density transit with aluminium frame. For high demand areas.
N/A IP66/IP67
UL/NEMA 4.4X, 12, 13

Communication area – Crypto & Sonar

Roxtec cable and pipe transits ensure electromagnetic shielding both inside, and around the sonar and crypto rooms. Use EMC solutions to protect equipment and create an internal barrier for sensitive information. Stop RFI, optimize communication security and ensure safety and survivability.

Roxtec RS Cable Transit Frame

Roxtec RS Cable Transit Frame

Why use Roxtec?

  • EMI/EMP protection
  • Watertight
  • Firestop
  • Gas-tight
  • Dust-tight
  • Flexibility for cables and pipes of different sizes
  • Built-in spare capacity for upgrades and retrofits
  • EMC solutions for electrical safety

Recommended Cable & Pipe Sealing Solutions

Description Fire Tightness
Roxtec S Transit Roxtec S Transit
Transit for welding to the structure. For welding into a precise aperture.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec RS Seal Roxtec RS Seal
Penetration seal for a single cable or pipe. For installation in existing sleeves or core drilled holes.
A-CLASS
H-CLASS
EI 60
EI 120
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec CF 8 32 Transits Roxtec CF 8/32 Transit
High cable density transit with aluminium frame. For high demand areas.
N/A IP66/IP67
UL/NEMA 4.4X, 12, 13

Engine room

Roxtec cable and pipe penetration seals are perfectly suited for large cables and pipes entering the engine room through decks and bulkheads. Use Roxtec transits to ensure the best possible protection for the heart of the ship.

Roxtec S Transit for Engine Rooms

Roxtec S Transit for Engine Rooms

Why use Roxtec?

  • Watertight
  • Gas-tight
  • Firestop
  • EMI/EMP protection
  • One opening for dozens of cables and pipes
  • Flexibility for cables and pipes of different sizes
  • EMC solutions for electrical safety
Description Fire Tightness
Roxtec S Transit Roxtec S Transit
Transit for welding to the structure. For welding into a precise aperture.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec RS Seal Roxtec RS Seal
Penetration seal for a single cable or pipe. For installation in existing sleeves or core drilled holes.
A-CLASS
H-CLASS
EI 60
EI 120
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec R Transit Roxtec R Transit
Round transit for sealing around multiple cables and pipes in a limited area. For installation in existing sleeves.
A-CLASS
H-CLASS
EI 60
EI 120
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec R X Transit Roxtec R X Transit
Transit for sealing around multiple cables and pipes in a limited are without welding or bolting. For attachment through expansion.
A-CLASS Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec CF 8 32 Transits Roxtec CF 8/32 Transit
High cable density transit with aluminium frame. For high demand areas.
N/A IP66/IP67
UL/NEMA 4.4X, 12, 13

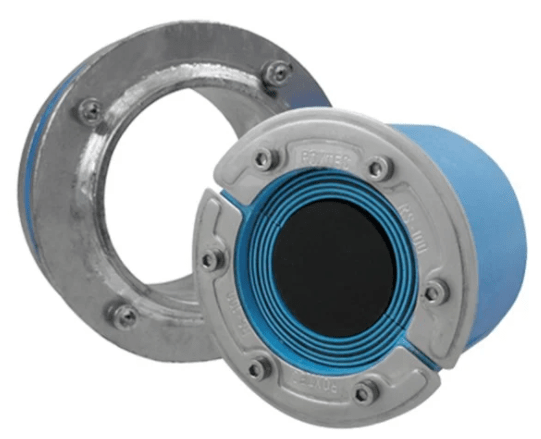

Roxtec RS X Seal Roxtec RS X Seal
Transit for use when welding is not allowed, recommended or desired. For high pressure penetrations.
A-CLASS Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec SBTB Transit Roxtec SBTB Transit
Transit with metal frame for an extra level of fire protection. For high fire demands.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)

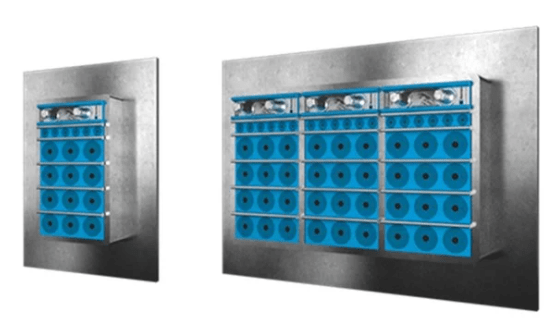

Roxtec SF Transit Roxtec SF Transit
Cable and pipe transit with metal frame and flange for welding to the structure. For wide aperture tolerance when welding.
A-CLASS
H-CLASS
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)

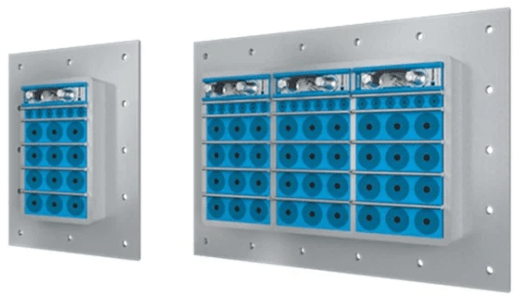

Roxtec SFHM Transit Roxtec SFHM
Transit with metal frame and flange for bolting to the structure.
A-CLASS
H-CLASS
Water: 4 bar (catastrophic)

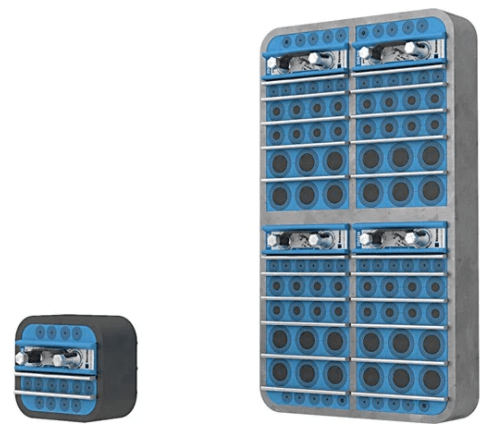

Roxtec SRC r20 Transit Roxtec SRC r20 Transit
Transit with metal frame for load-bearing structures. Corner radius 20mm.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)

Gas-tight areas

Roxtec seals are not only your solution for safety, they provide EMI/EMP protection and excellent blast load resistance. Additionally, the transits reduce vibration and are area efficient in order to allow more free space onboard.

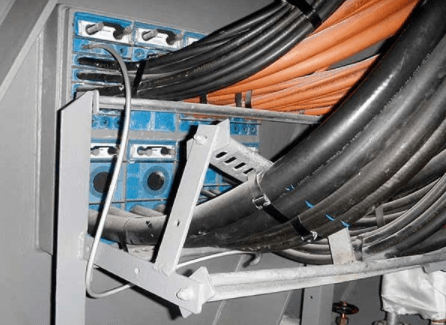

Roxtec SBTB Transit for Gas-Tight Area

Roxtec SBTB Transit for Gas-Tight Area

Why use Roxtec?

  • Watertight
  • Firestop
  • Gas-tight
  • Flexibility for cables and pipes of different sizes
  • Built-in spare capacity for upgrades and retrofits
  • Back-to-back solutions for increased protection
Description Fire Tightness
Roxtec S Transit Roxtec S Transit
Transit for welding to the structure. For welding into a precise aperture.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec RS Seal Roxtec RS Seal
Penetration seal for a single cable or pipe. For installation in existing sleeves or core drilled holes.
A-CLASS
H-CLASS
EI 60
EI 120
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec R Transit Roxtec R Transit
Round transit for sealing around multiple cables and pipes in a limited area. For installation in existing sleeves.
A-CLASS
H-CLASS
EI 60
EI 120
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec SBTB Transit Roxtec SBTB Transit
Transit with metal frame for an extra level of fire protection. For high fire demands.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec SF Transit Roxtec SF Transit
Cable and pipe transit with metal frame and flange for welding to the structure. For wide aperture tolerance when welding.
A-CLASS
H-CLASS
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)

Hydraulic and compressed air systems

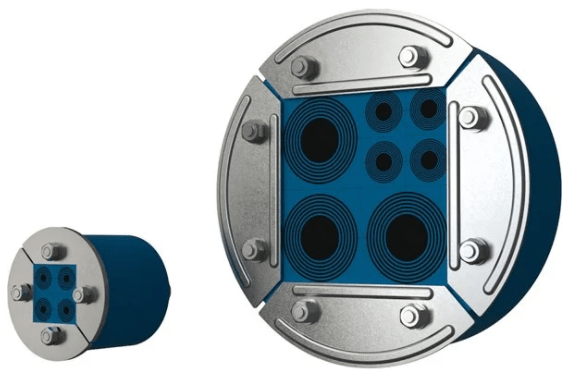

Roxtec’s round cable transits and rectangular penetration seals are ideal for single or multiple cables, pipes and tubes. Use Roxtec transits to ensure certified fire protection in A-0 to A-60 rated areas and maintain the ability to reopen the seals whenever you need.

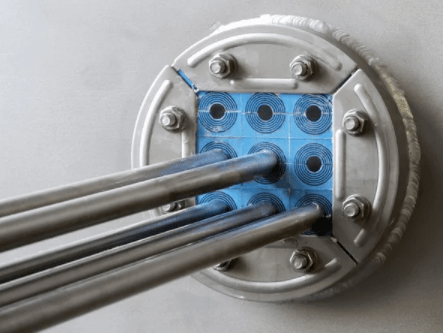

Roxtec R Transit for Hydraulic & Compressed Air Systems

Roxtec R Transit for Hydraulic & Compressed Air Systems

Why use Roxtec?

  • Watertight
  • Firestop
  • Vibration damping
  • Noise reduction
  • One opening for dozens of cables and pipes
  • Flexibility for cables and pipes of different sizes
  • Ex solutions for hazardous locations
Description Fire Tightness
Roxtec S Transit Roxtec S Transit
Transit for welding to the structure. For welding into a precise aperture.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec RS Seal Roxtec RS Seal
Penetration seal for a single cable or pipe. For installation in existing sleeves or core drilled holes.
A-CLASS
H-CLASS
EI 60
EI 120
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec R Transit Roxtec R Transit
Round transit for sealing around multiple cables and pipes in a limited area. For installation in existing sleeves.
A-CLASS
H-CLASS
EI 60
EI 120
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec R X Transit Roxtec R X Transit
Transit for sealing around multiple cables and pipes in a limited area without welding or bolting.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)

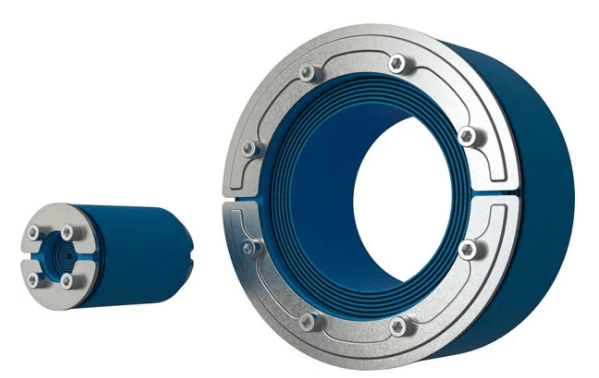

Roxtec RS OMD Seal Roxtec RS OMD Seal
Flexible transit with adaptable outside to fit non-standard sleeve sizes.
A-CLASS
H-CLASS
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec RS X Seal Roxtec RS X Seal
Transit for use when welding is not allowed, recommended or desired. For high pressure penetrations.
A-CLASS Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)

Power Generators, Motors and Thrusters

Roxtec cable seals are perfect for large cables entering the engine room through decks and bulkheads. Use Roxtec transits to achieve well-organized pipe penetrations and cable entries both inside, and around machine areas and engine control rooms. Also, benefit from savings resulting from the reduced space requirements of cabinets and enclosures.

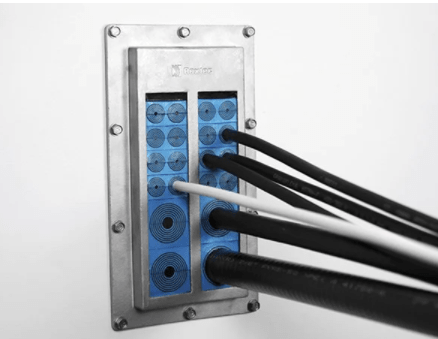

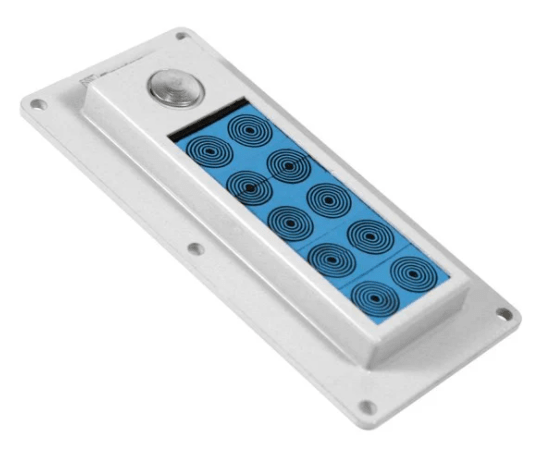

Roxtec ComSeal

Roxtec ComSeal

Why use Roxtec?

  • Watertight
  • Firestop
  • EMI protection
  • Dust-tight
  • One opening for dozens of cables
  • Flexibility for cables and pipes of different sizes
  • EMC solutions for electrical safety
Description Fire Tightness
Roxtec CF 8 32 Transits Roxtec CF 8/32 Transit
High cable density transit with aluminium frame. For high demand areas.
N/A IP66/IP67
UL/NEMA 4.4X, 12, 13
Roxtec ComSeal Roxtec ComSeal
IP55 rated entry seals with aluminium frame
N/A IP55
UL/NEMA 3, 12, 12K

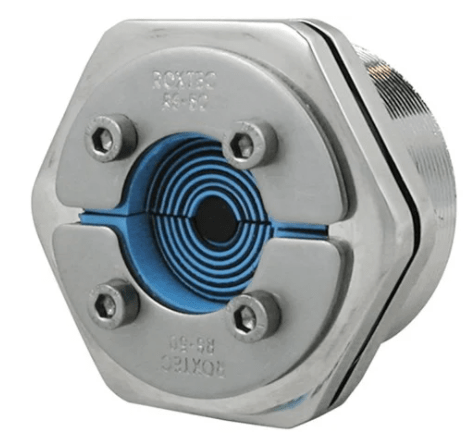

Roxtec C RS T Seal Roxtec C RS T Seal
Round seal for single cable entries
N/A IP66/67
IP69K
UL/NEMA 4, 4X, 12, 13

Water pipes

Regardless of your preferred pipe material, Roxtec has the sealing solution. Roxtec pipe seals are A-0 and A-60 approved for all metal and most plastic pipes.

Use them to ensure watertight deck and bulkhead penetrations, to avoid the risk of water spreading from any leaking pipes and to be able to reopen the transits whenever you need.

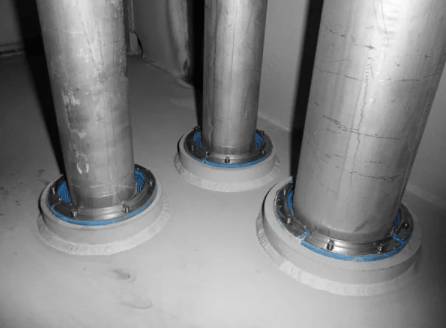

Roxtec RS Seal for Water Pipes

Roxtec RS Seal for Water Pipes

Why use Roxtec?

  • Watertight
  • Firestop
  • Vibration damping
  • Certified solution
  • Easy and safe installation of pipes
  • Can be used for fresh, chilled and waste water
Description Fire Tightness
Roxtec S Transit Roxtec S Transit
Transit for welding to the structure. For welding into a precise aperture.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec RS Seal Roxtec RS Seal
Penetration seal for a single cable or pipe. For installation in existing sleeves or core drilled holes.
A-CLASS
H-CLASS
EI 60
EI 120
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec R X Transit Roxtec R X Transit
Transit for sealing around multiple cables and pipes in a limited area without welding or bolting.
A-CLASS
H-CLASS
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)

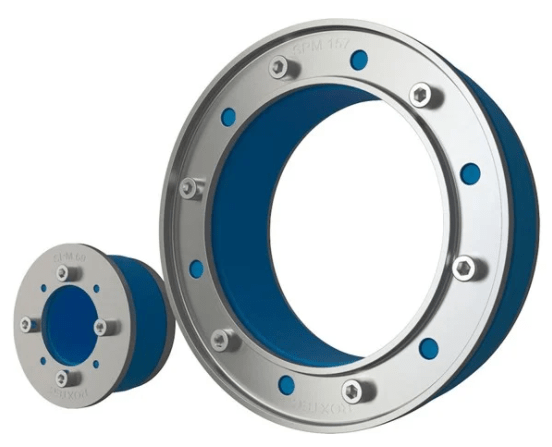

Roxtec SPM Seal Roxtec SPM Seal
Seal for metal pipes for use when welding is not allowed, recommended or desired.
Easy to install without welding.
A-CLASS Gas: 0.67 bar (catastrophic)
Water: 1 bar (catastrophic)
Roxtec RS OMD Seal Roxtec RS OMD Seal
Flexible transit with adaptable outside to fit non-standard sleeve sizes.
A-CLASS
H-CLASS
UL 1479
Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec RS X Seal Roxtec RS X Seal
Transit for use when welding is not allowed, recommended or desired. For high pressure penetrations.
A-CLASS Gas: 2.67 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec RS PPS Seal Roxtec RS PPS
Penetration seal for large single plastic pipes.
For installation in existing sleeve.
A-CLASS Gas: 2 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec S Transit with SE PPS Roxtec S with SE PPS
Transit for multiple plastic pipes.
For welding into precise openings.
A-CLASS Gas: 2.5 bar (catastrophic)
Water: 4 bar (catastrophic)
Roxtec Sleev-it Fire Roxtec Sleev-it Fire Penetration Seal
Fire penetration seal for single plastic pipes.
For fire rated divisions.
A-CLASS
B-CLASS
N/A
Roxtec Sleev-it Waterproof Roxtec Sleev-it Waterproof Penetration Seal
Penetration seal for plastic pipes for basic protection against fire, gas & water.
Waterproof seal for exact/fixed pipe diameters.
A-CLASS
B-CLASS
Water: 1 bar (catastrophic)



Further Reading

Cable Sealing Using Roxtec

Roxtec cable seals are used in cable vaults, duct banks, electrical substations, trenches and M&E building services protecting low, medium and high voltage power systems against numerous external risk factors:

  • Fire – A60, H120 Class bulkhead sealing for offshore classification against jet-fire or spray and prevention of suffocating smoke spread
  • Gas – ensure complete tightness against air and gas pressure or migration through cable ducts with DSEAR compliance
  • Water – prevent flood and water penetration into substations and buildings – avoid humidity and partial discharge conditions
  • Cables – withstand cable bending load in heavy power and high voltage cable seal applications
  • Pressure – protect against catastrophic sudden or constant pressure
  • Electrical – protect cables and electrical infrastructure against EMI, EMP and lightning strike effects
  • Particles – control levels of of dirt, dust, chemical and fumigants from entering buildings, cable ducts and substations
  • Blast – protect against vibration, shock-waves and the risk of explosion in industrial and hazardous area locations
Roxtec Cable Transits

Cable Transits – Sealing Cables & Pipes

Cable Transits

Roxtec cable transits are used to prevent water, gas, fire, dust and rodents from entering cable duct openings and potentially causing damage to cables and other electrical infrastructure.

Cable transit systems can be designed for sealing medium/high voltage substations including 11kV/33kV and “triplex” type cables in single, multiple or trefoil configuration.

Roxtec modular cable transit seals are based upon a rubber design with seals that are constructed of a number of removable layers to secure a watertight, gas tight and fire proof seal around the cable or pipe – the range includes rectangular transits and round transits to fit a variety of pipes and cable sizes.

Cable transit products ensure safety, reliability and efficiency by providing an effective, dependable seal around cables and pipes through an opening, penetration or duct.

LV MV HV Jointing, Earthing, Substation & Electrical Eqpt
